SKF 306474 D

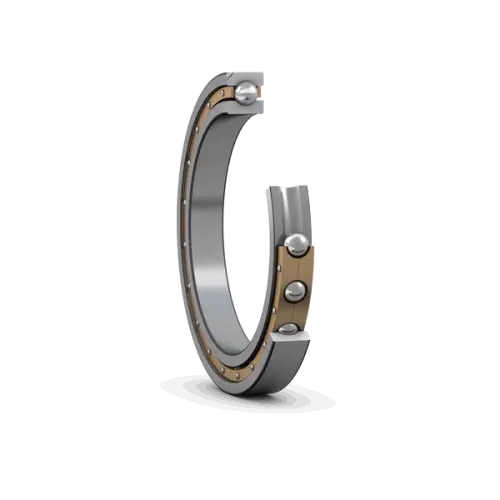

Deep groove ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
760.0 mm
Bore diameter
D
1080.0 mm
Outside diameter
B
150.0 mm
Width
d1
862.6 mm
Shoulder diameter
D1
973.0 mm
Shoulder diameter
h
32.0 mm
Depth of locating slot
b
20.5 mm
Width of locating slot
r0
3.0 mm
Corner radius of locating slot
r1,2
7.5 mm
Chamfer dimension
mass
430.0 kg
Product net weight
