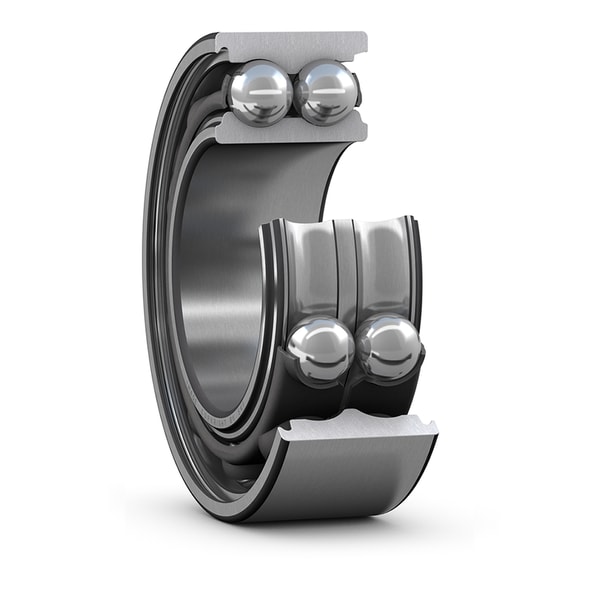

SKF 3217 A/C3
Double row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
Bore diameter
d
85.0 mm
Outside diameter
D
150.0 mm
Width
B
49.2 mm
Shoulder diameter inner ring
d1
103.73 mm
Shoulder diameter outer ring
D1
135.19 mm
Chamfer dimension inner ring
r1,2
2.0 mm
Distance pressure point(s)
a
88.0 mm
mass
3.03 kg
Product net weight
