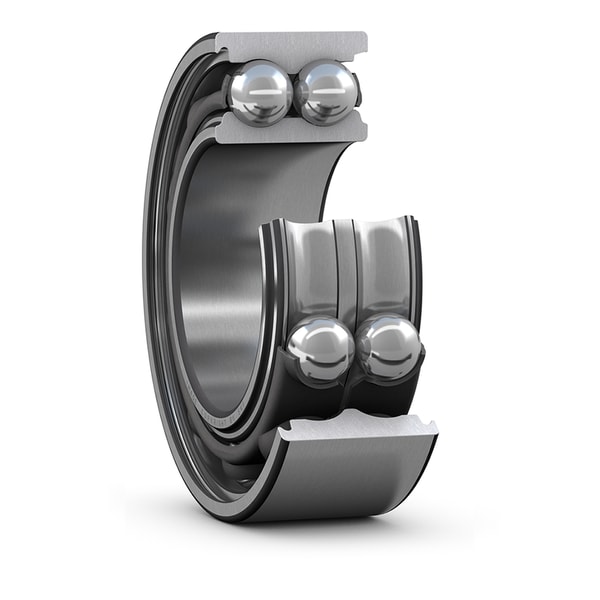

SKF 3316 A
Double row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
80.0 mm
Bore diameter
D
170.0 mm
Outside diameter
B
68.3 mm
Width
d1
109.0 mm
Shoulder diameter inner ring
D1
143.3 mm
Shoulder diameter outer ring
r1,2
2.1 mm
Chamfer dimension inner ring
a
101.0 mm
Distance pressure point(s)
mass
6.27 kg
Product net weight
