SKF 3318 A

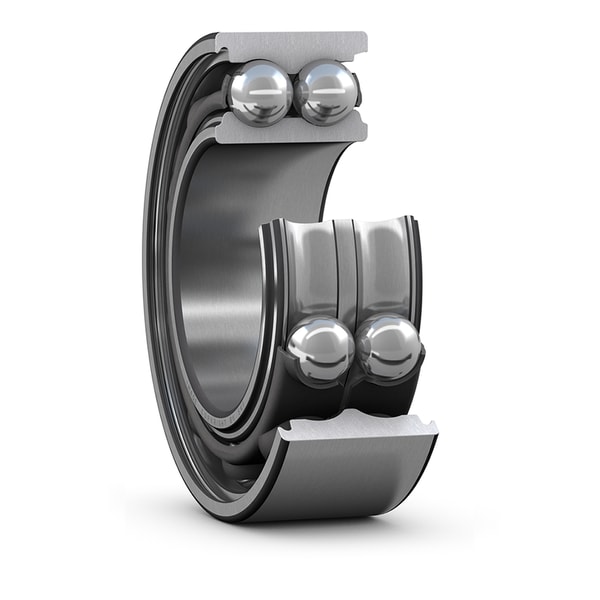

Double row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
90.0 mm
Bore diameter
D
190.0 mm
Outside diameter
B
73.0 mm
Width
d1
123.85 mm
Shoulder diameter inner ring
D1
159.83 mm
Shoulder diameter outer ring
r1,2
3.0 mm
Chamfer dimension inner ring
a
112.0 mm
Distance pressure point(s)
mass
8.54 kg
Product net weight
