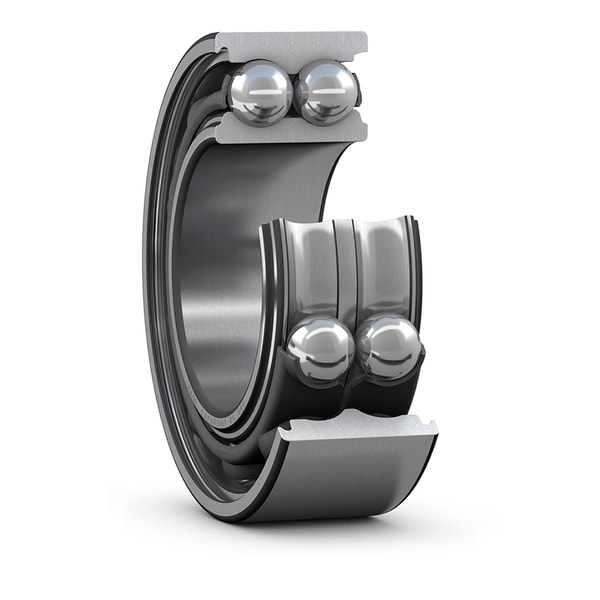

SKF 3320 A
Double row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
100.0 mm
Bore diameter
D
215.0 mm
Outside diameter
B
82.6 mm
Width
d1
135.78 mm
Shoulder diameter inner ring
D1
179.49 mm
Shoulder diameter outer ring
r1,2
3.0 mm
Chamfer dimension inner ring
a
127.0 mm
Distance pressure point(s)
mass
12.5 kg
Product net weight
