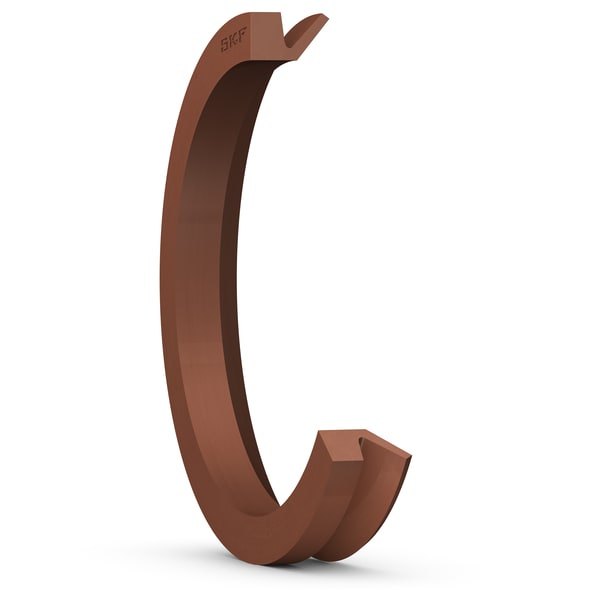

SKF 400284
V-ring seal, VR1 design, North American standard, interchangeable with VA design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
25.0 mm
Seal inside diameter, free state
b
7.5 mm
Nominal seal width
b1
4.7 mm
Seal seat width
c
4.0 mm
Nominal seal height
2 x
2.0 mm
Radial gap
2 y
12.0 mm
Radial distance
B1
6.0 mm
Seal fitted width
mass
0.0023 kg
Product net weight
