SKF 400900

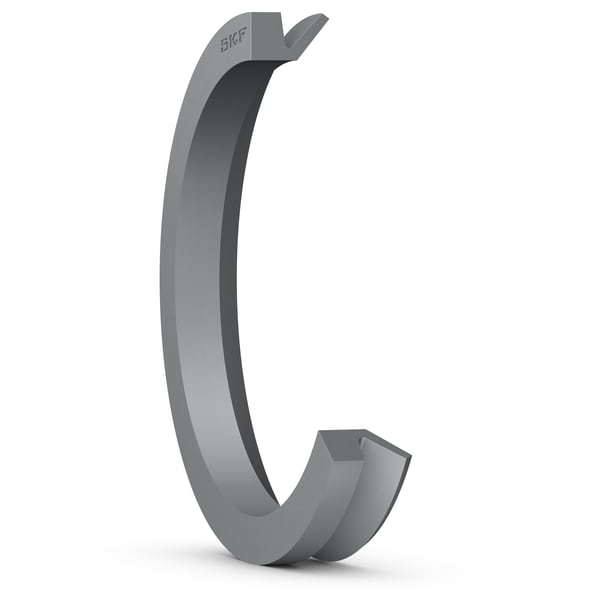

V-ring seal, VR1 design, North American standard, interchangeable with VA design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
81.0 mm
Seal inside diameter, free state
b
11.0 mm
Nominal seal width
b1
6.8 mm
Seal seat width
c
6.0 mm
Nominal seal height
2 x
3.0 mm
Radial gap
2 y
18.0 mm
Radial distance
B1
9.0 mm
Seal fitted width
mass
0.0113 kg
Product net weight
