SKF 52226

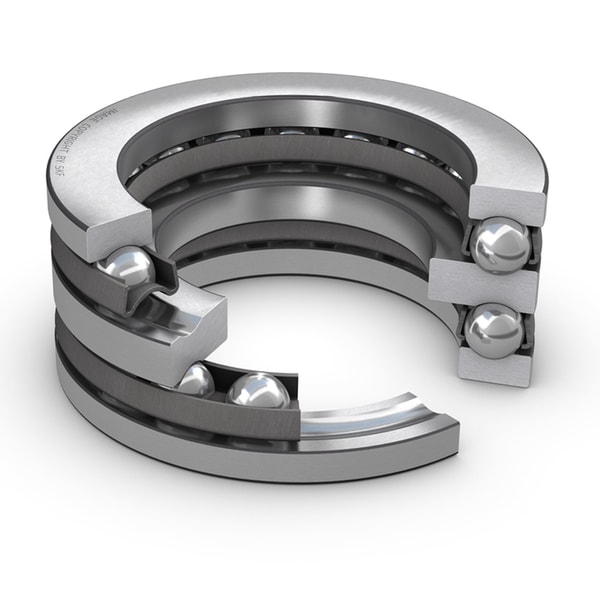

Double direction thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
110.0 mm
Bore diameter
D
190.0 mm
Outside diameter
H
80.0 mm
Height
D1
133.0 mm
Inner diameter housing washer
B
18.0 mm
Height shaft washer
r1,2
1.5 mm
Chamfer dimension housing washer
r3,4
1.1 mm
Chamfer dimension shaft washer
mass
7.29 kg
Product net weight
