SKF 52228

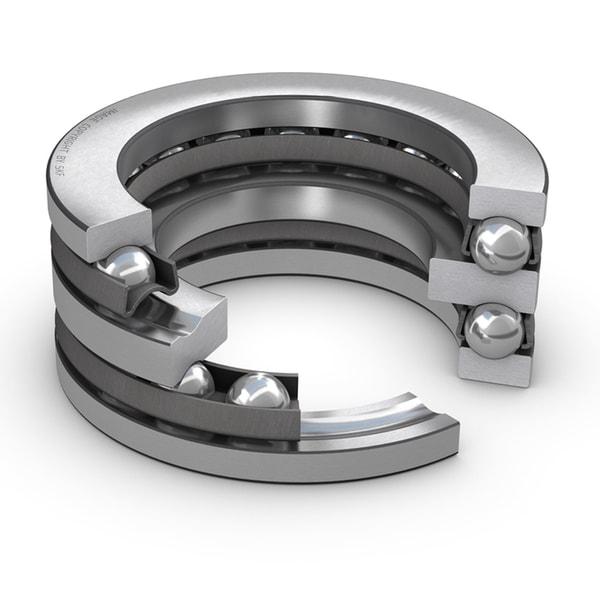

Double direction thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
200.0 mm
Outside diameter
H
81.0 mm
Height
D1
143.0 mm
Inner diameter housing washer
B
18.0 mm
Height shaft washer
r1,2
1.5 mm
Chamfer dimension housing washer
r3,4
1.1 mm
Chamfer dimension shaft washer
mass
7.9 kg
Product net weight
