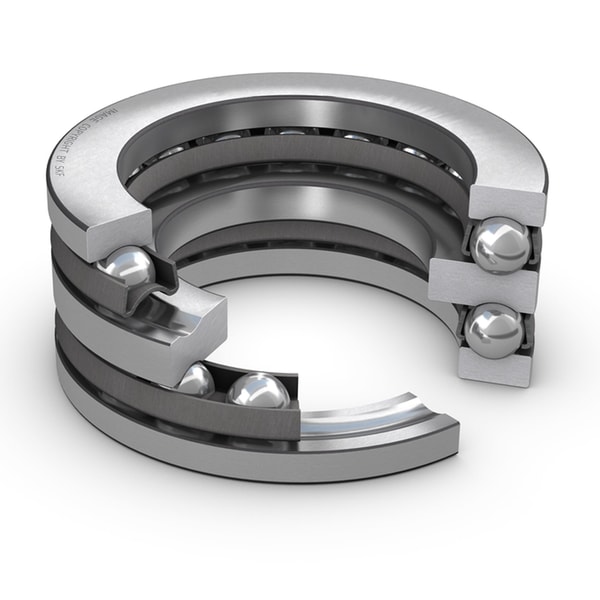

SKF 52232 M
Double direction thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
140.0 mm
Bore diameter
D
225.0 mm
Outside diameter
H
90.0 mm
Height
D1
163.0 mm
Inner diameter housing washer
B
20.0 mm
Height shaft washer
r1,2
1.5 mm
Chamfer dimension housing washer
r3,4
1.1 mm
Chamfer dimension shaft washer
mass
12.2 kg
Product net weight
