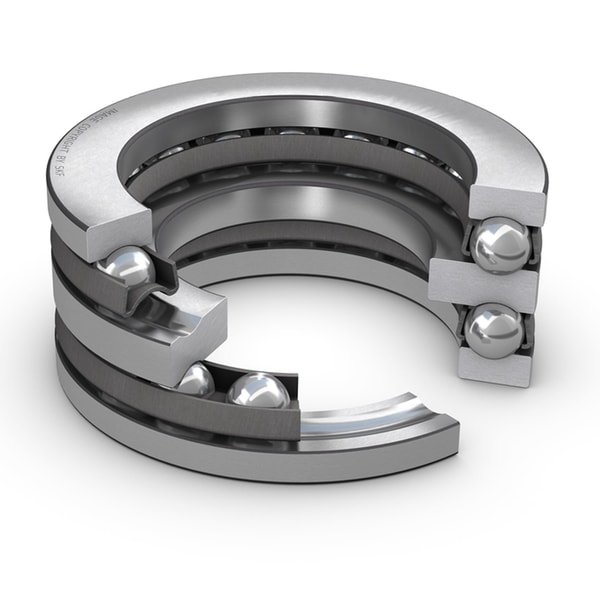

SKF 52316
Double direction thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
65.0 mm
Bore diameter
D
140.0 mm
Outside diameter
H
79.0 mm
Height
D1
82.0 mm
Inner diameter housing washer
B
18.0 mm
Height shaft washer
r1,2
1.5 mm
Chamfer dimension housing washer
r3,4
1.0 mm
Chamfer dimension shaft washer
mass
4.77 kg
Product net weight
