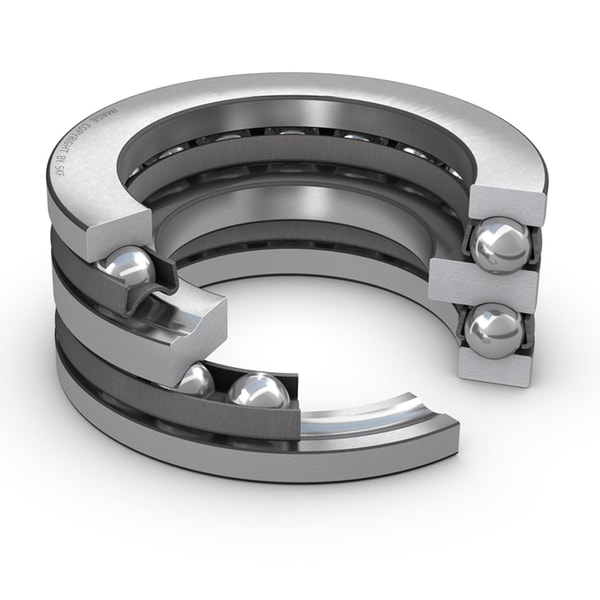

SKF 52320
Double direction thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
85.0 mm
Bore diameter
D
170.0 mm
Outside diameter
H
97.0 mm
Height
D1
103.0 mm
Inner diameter housing washer
B
21.0 mm
Height shaft washer
r1,2
1.5 mm
Chamfer dimension housing washer
r3,4
1.0 mm
Chamfer dimension shaft washer
mass
8.6 kg
Product net weight
