SKF 53203

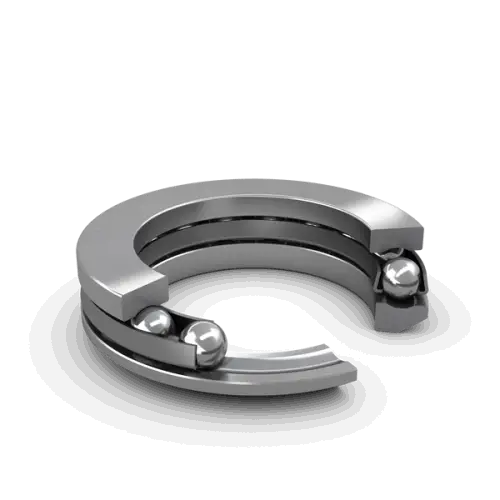

Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
17.0 mm
Bore diameter
D
35.0 mm
Outside diameter
H
13.2 mm
Height
H1
15.0 mm
Height bearing including seat washer
d1
35.0 mm
Outside diameter shaft washer
D1
19.0 mm
Inner diameter housing washer
D2
26.0 mm
Inner diameter seat washer
D3
38.0 mm
Outside diameter seat washer
C
4.0 mm
Height seat washer
R
32.0 mm
Radius sphered housing washer
s
16.0 mm
Centre height housing washer sphere
r1,2
0.6 mm
Chamfer dimension washer
mass
0.055 kg
Product net weight
