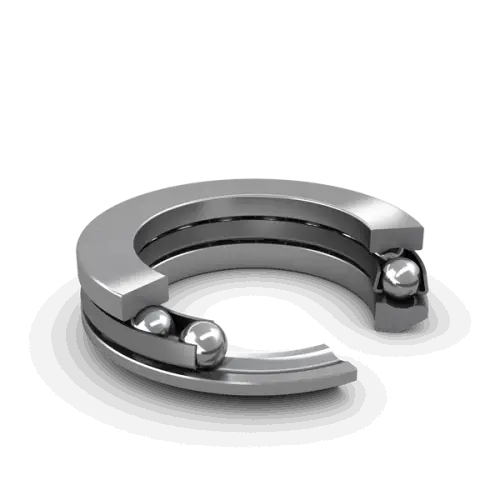

SKF 53316
Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
140.0 mm
Outside diameter
H
47.6 mm
Height
H1
52.0 mm
Height bearing including seat washer
d1
140.0 mm
Outside diameter shaft washer
D1
82.0 mm
Inner diameter housing washer
D2
110.0 mm
Inner diameter seat washer
D3
145.0 mm
Outside diameter seat washer
C
15.0 mm
Height seat washer
R
112.0 mm
Radius sphered housing washer
s
50.0 mm
Centre height housing washer sphere
r1,2
1.5 mm
Chamfer dimension washer
mass
2.68 kg
Product net weight
