SKF 53324 M

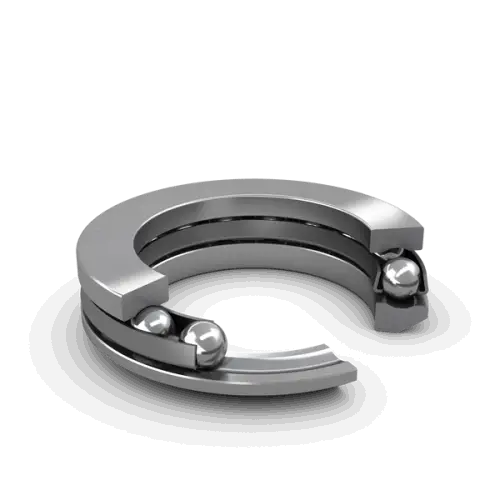

Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
210.0 mm
Outside diameter
H
74.1 mm
Height
H1
80.0 mm
Height bearing including seat washer
d1
205.0 mm
Outside diameter shaft washer
D1
123.0 mm
Inner diameter housing washer
D2
165.0 mm
Inner diameter seat washer
D3
220.0 mm
Outside diameter seat washer
C
22.0 mm
Height seat washer
R
160.0 mm
Radius sphered housing washer
s
63.0 mm
Centre height housing washer sphere
r1,2
2.1 mm
Chamfer dimension washer
mass
10.4 kg
Product net weight
