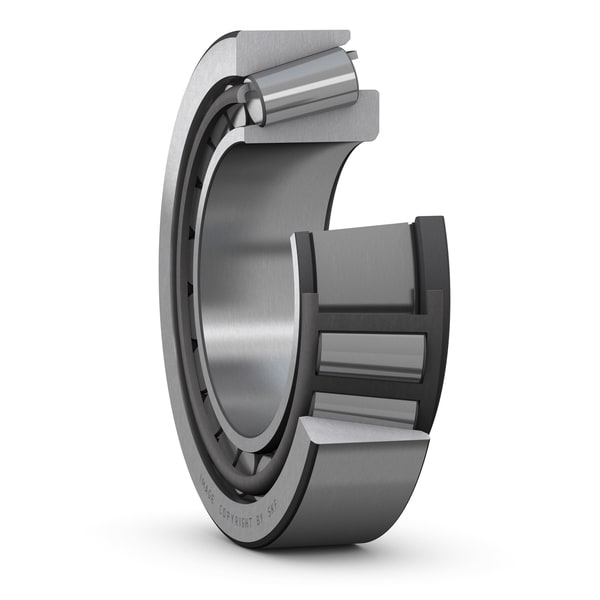

SKF 537/532 X
Single row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.8 mm
Bore diameter
D
107.95 mm
Outside diameter
T
36.512 mm
Total width
d1
76.55 mm
Shoulder diameter of inner ring
B
36.957 mm
Width of inner ring
C
28.575 mm
Width of outer ring
r1,2
3.5 mm
Chamfer dimension of inner ring
r3,4
3.3 mm
Chamfer dimension of outer ring
a
23.799 mm
Distance side face to pressure point
mass
1.51 kg
Product net weight
