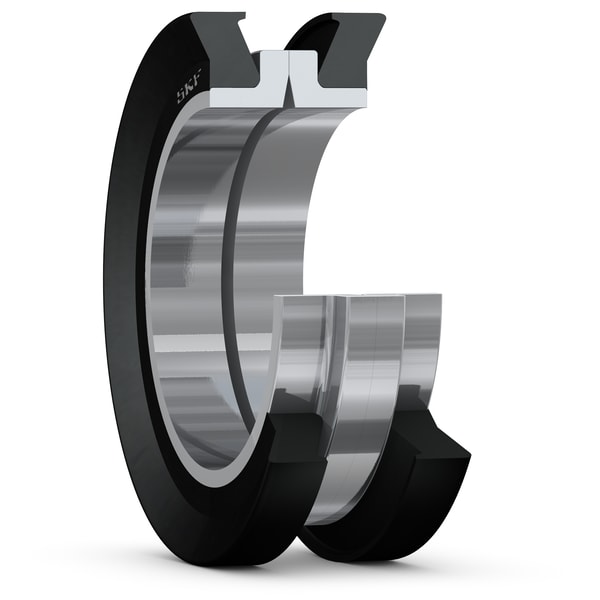

SKF 54000
Metal face seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
137.16 mm
Shaft diameter
D
177.55 mm
Housing bore diameter
B1
33.27 mm
Operating width
B
15.88 mm
Housing bore depth
d3
142.88 mm
Seal inside diameter
b
30.02 mm
Width of metal sealing rings
r
1.45 mm
Radius
mass
0.782 kg
Product net weight
