SKF 54308

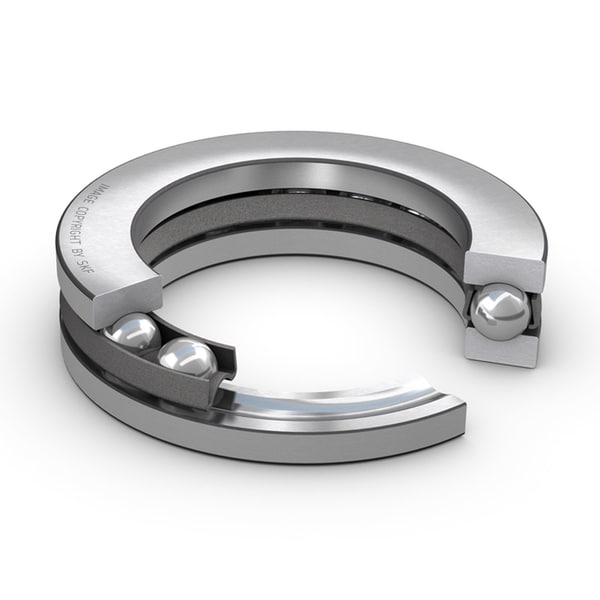

Double direction thrust ball bearing with sphered housing washers
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
78.0 mm
Outside diameter
H
54.1 mm
Height
H1
59.0 mm
Height bearing including seat washer
D1
42.0 mm
Inner diameter housing washer
D2
60.0 mm
Inner diameter sphered seat washer
D3
82.0 mm
Outside diameter sphered housing washer
B
12.0 mm
Height shaft washer
C
8.5 mm
Height sphered housing washer
R
64.0 mm
Radius sphered housing washer
s
23.5 mm
Centre height housing washer sphere
r1,2
1.0 mm
Chamfer dimension housing washer
r3,4
0.6 mm
Chamfer dimension shaft washer
mass
1.1 kg
Product net weight
