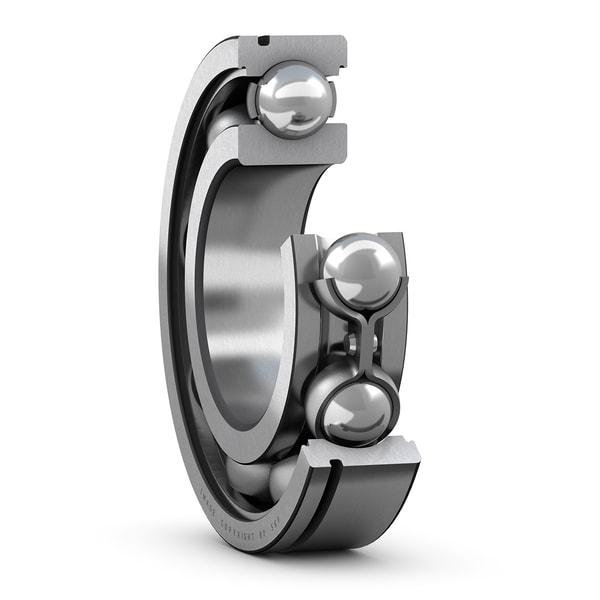

SKF 6007 N
Deep groove ball bearing with snap ring groove
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
35.0 mm
Bore diameter
D
62.0 mm
Outside diameter
B
14.0 mm
Width
d1
43.75 mm
Shoulder diameter
D2
55.61 mm
Recess diameter
D3
59.61 mm
Diameter of snap ring groove
b
1.9 mm
Width of snap ring groove
C
2.06 mm
Distance from outer ring side face to snap ring groove
r0
0.6 mm
Bottom radius of snap ring groove
r1,2
1.0 mm
Chamfer dimension
mass
0.146 kg
Product net weight
