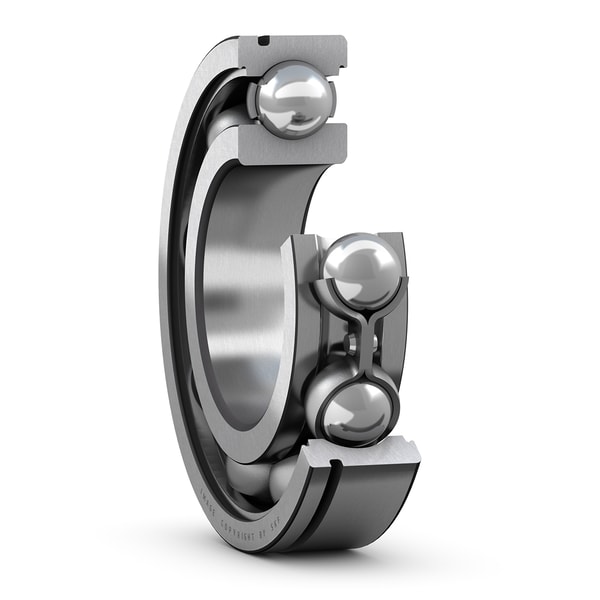

SKF 6010 N
Deep groove ball bearing with snap ring groove
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
50.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
16.0 mm
Width
d1
59.75 mm
Shoulder diameter
D2
72.8 mm
Recess diameter
D3
76.81 mm
Diameter of snap ring groove
b
1.9 mm
Width of snap ring groove
C
2.49 mm
Distance from outer ring side face to snap ring groove
r0
0.6 mm
Bottom radius of snap ring groove
r1,2
1.0 mm
Chamfer dimension
mass
0.25 kg
Product net weight
