SKF 6014 M/HC5C4

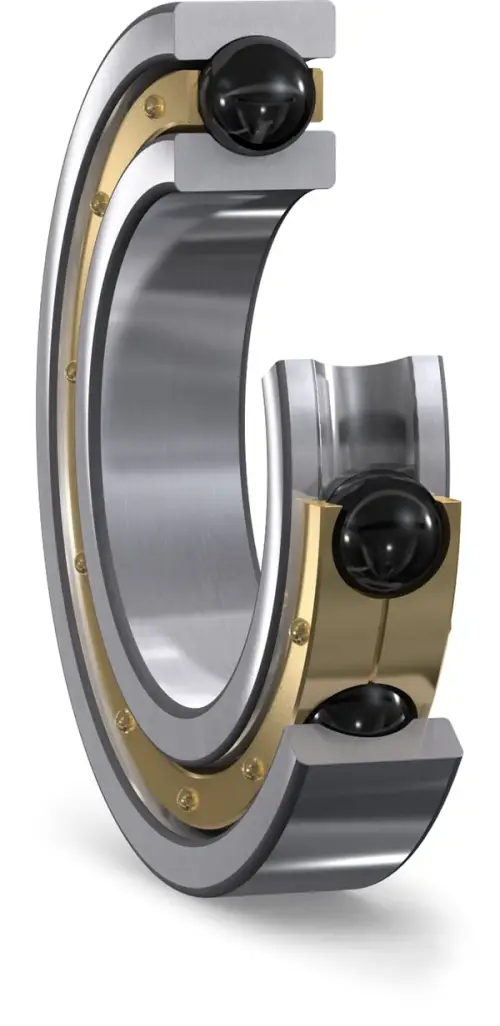

Hybrid ceramic deep groove ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
20.0 mm
Width
d1
82.85 mm
Shoulder diameter inner ring
D1
97.15 mm
Shoulder diameter outer ring
D2
99.9 mm
Recess diameter outer ring shoulder
r1,2
1.1 mm
Chamfer dimension
mass
0.631 kg
Product net weight
