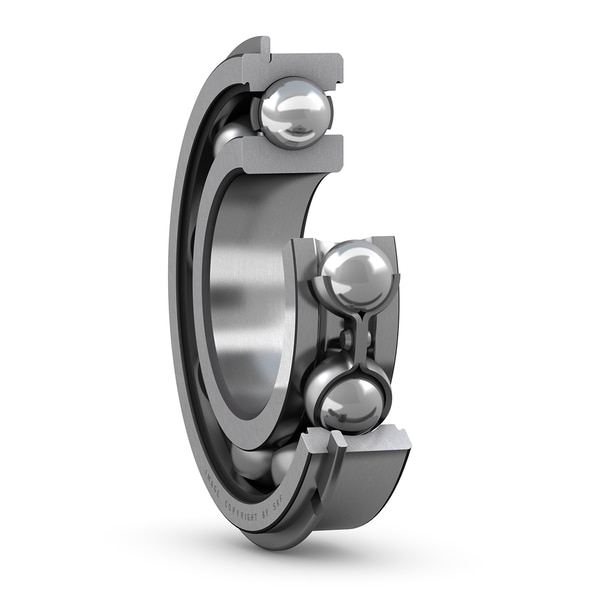

SKF 6016 NR

Deep groove ball bearings

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

d 80.0 mm Bore diameter

D 125.0 mm Outside diameter

B 22.0 mm Width

d₁ 94.4 mm Shoulder diameter

D₂ 114.1 mm Recess diameter

D₃ 120.22 mm Diameter of snap ring groove

D₄ 134.7 mm Outside diameter of snap ring

b 3.1 mm Width of snap ring groove

C 2.87 mm Distance from outer ring side face to snap ring groove

f 2.82 mm Width of snap ring

r₀ 0.6 mm Bottom radius of snap ring groove

r_1,2 1.1 mm Chamfer dimension

mass 0.836 kg Product net weight
