SKF 61803-2RZ

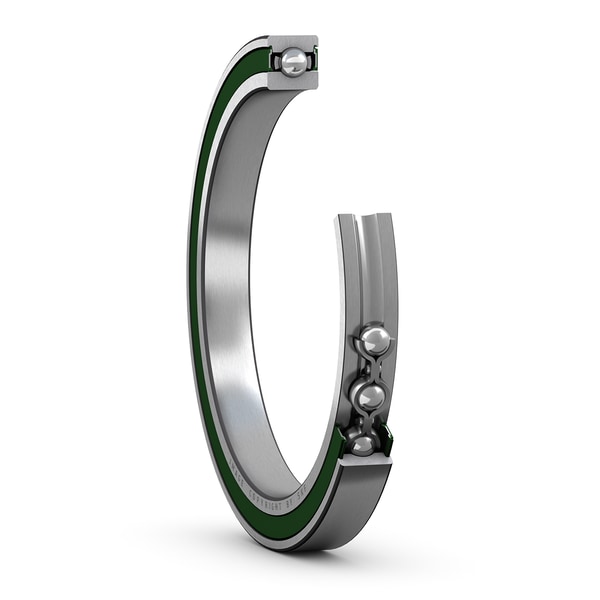

Deep groove ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
17.0 mm
Bore diameter
D
26.0 mm
Outside diameter
B
5.0 mm
Width
d1
19.8 mm
Shoulder diameter
D2
24.15 mm
Recess diameter
r1,2
0.3 mm
Chamfer dimension
mass
0.0084 kg
Product net weight
