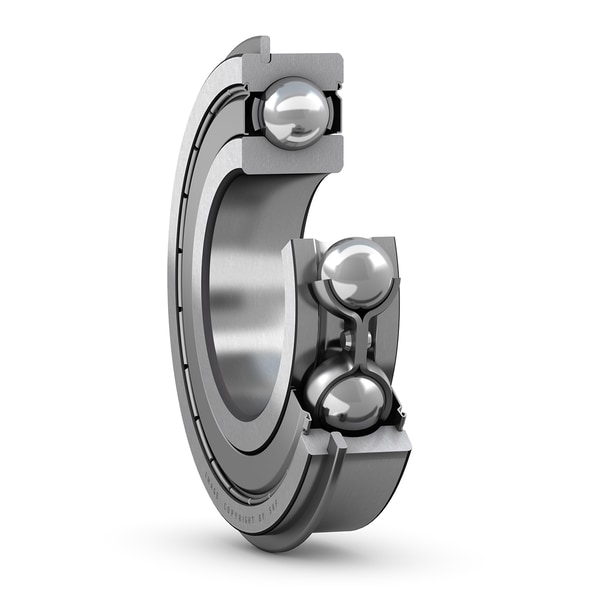

SKF 6202-2ZNR
Deep groove ball bearing with snap ring and integral sealing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
15.0 mm
Bore diameter
D
35.0 mm
Outside diameter
B
11.0 mm
Width
d1
21.7 mm
Shoulder diameter
D2
30.5 mm
Recess diameter
D3
33.17 mm
Diameter of snap ring groove
D4
39.7 mm
Outside diameter of snap ring
b
1.35 mm
Width of snap ring groove
C
2.06 mm
Distance from outer ring side face to snap ring groove
f
1.12 mm
Width of snap ring
r0
0.4 mm
Bottom radius of snap ring groove
r1,2
0.6 mm
Chamfer dimension
mass
0.0473 kg
Product net weight
