SKF 6203-2Z/VA201

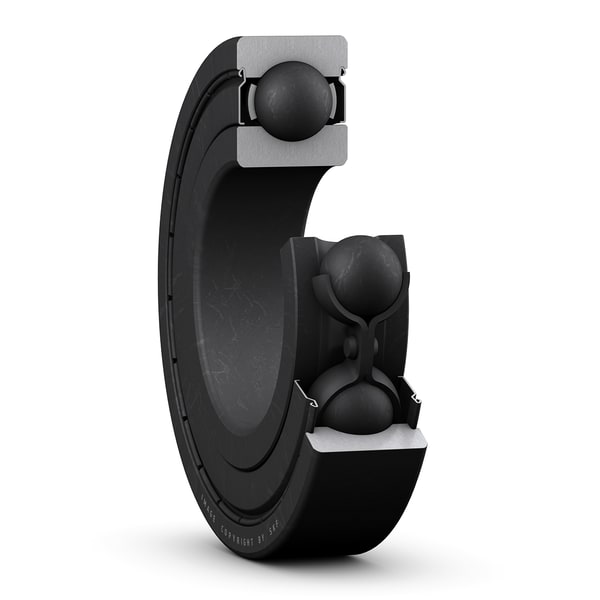

Deep groove ball bearing for high temperature applications with shields on both sides
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
17.0 mm
Bore diameter
D
40.0 mm
Outside diameter
B
12.0 mm
Width
d1
24.5 mm
Shoulder diameter inner ring
D2
34.98 mm
Recess diameter outer ring shoulder
r1,2
0.6 mm
Chamfer dimension
mass
0.0657 kg
Product net weight
