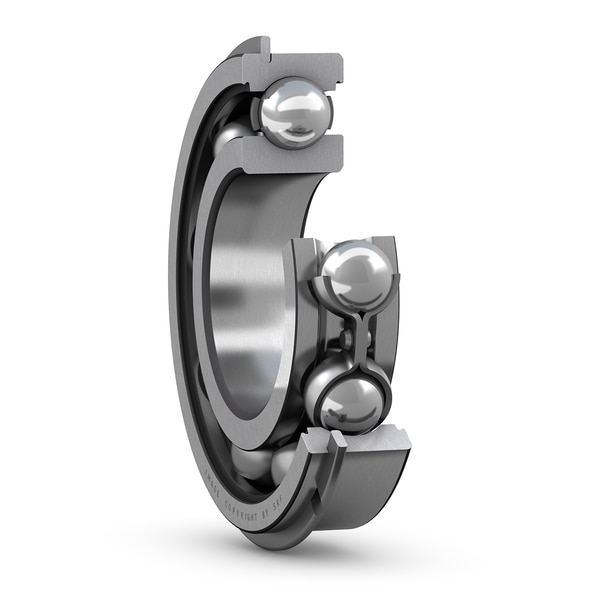

SKF 6203 NR
Deep groove ball bearing with snap ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
17.0 mm
Bore diameter
D
40.0 mm
Outside diameter
B
12.0 mm
Width
d1
24.5 mm
Shoulder diameter
D2
34.98 mm
Recess diameter
D3
38.1 mm
Diameter of snap ring groove
D4
44.6 mm
Outside diameter of snap ring
b
1.35 mm
Width of snap ring groove
C
2.06 mm
Distance from outer ring side face to snap ring groove
f
1.12 mm
Width of snap ring
r0
0.4 mm
Bottom radius of snap ring groove
r1,2
0.6 mm
Chamfer dimension
mass
0.0642 kg
Product net weight
