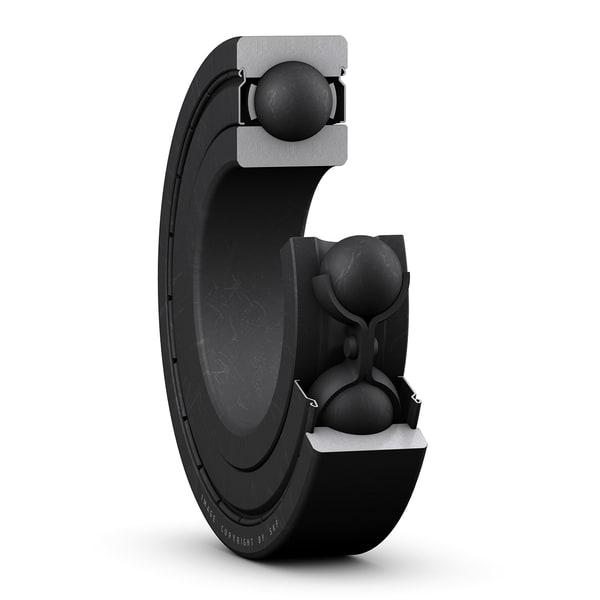

SKF 6204-2Z/VA201
Deep groove ball bearing for high temperature applications with shields on both sides
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
14.0 mm
Width
d1
28.72 mm
Shoulder diameter inner ring
D2
40.59 mm
Recess diameter outer ring shoulder
r1,2
1.0 mm
Chamfer dimension
mass
0.106 kg
Product net weight
