SKF 6207 TN9/HC5C3

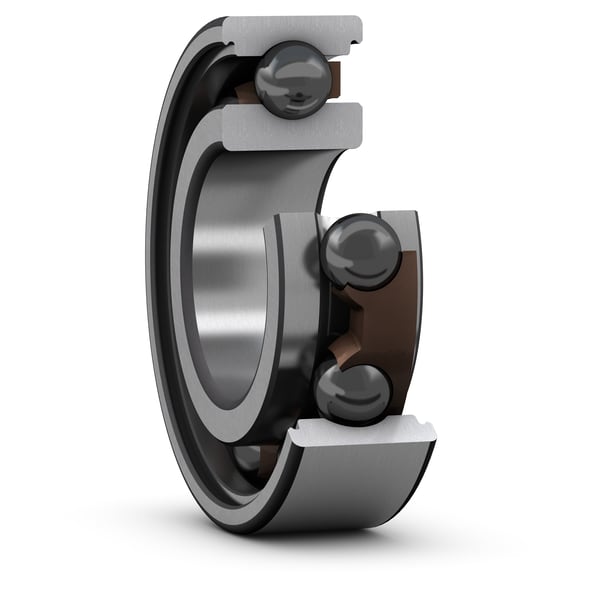

Hybrid ceramic deep groove ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
35.0 mm
Bore diameter
D
72.0 mm
Outside diameter
B
17.0 mm
Width
d1
46.94 mm
Shoulder diameter inner ring
D1
59.95 mm
Shoulder diameter outer ring
D2
62.69 mm
Recess diameter outer ring shoulder
r1,2
1.1 mm
Chamfer dimension
mass
0.241 kg
Product net weight
