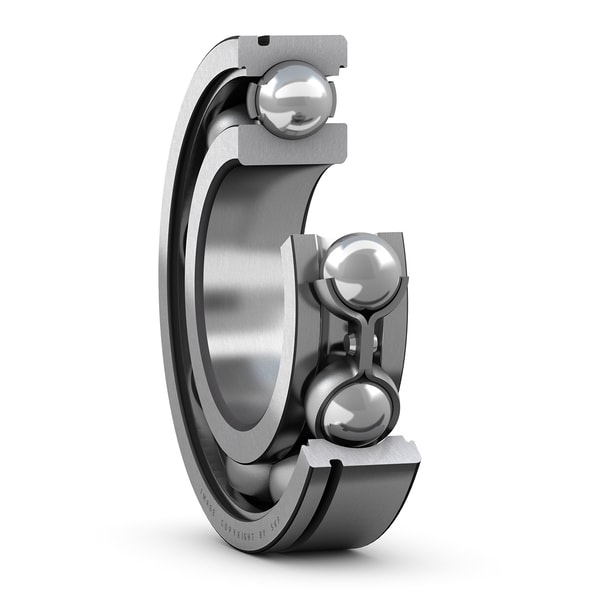

SKF 6210 N
Deep groove ball bearing with snap ring groove
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
90.0 mm
Outside diameter
B
20.0 mm
Width
d1
62.51 mm
Shoulder diameter
D2
81.61 mm
Recess diameter
D3
86.79 mm
Diameter of snap ring groove
b
2.7 mm
Width of snap ring groove
C
3.28 mm
Distance from outer ring side face to snap ring groove
r0
0.6 mm
Bottom radius of snap ring groove
r1,2
1.1 mm
Chamfer dimension
mass
0.433 kg
Product net weight
