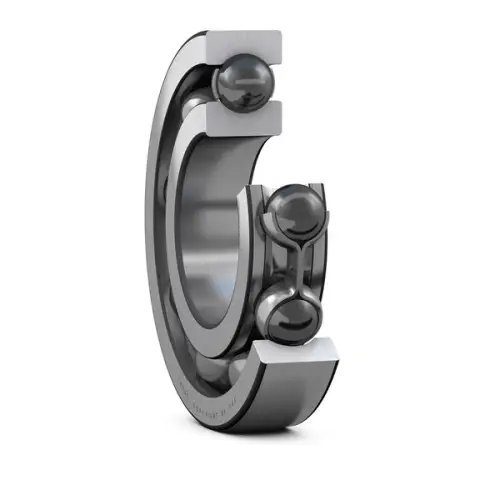

SKF 6306/HC5C3
Hybrid ceramic deep groove ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
D
72.0 mm
Outside diameter
B
19.0 mm
Width
d1
44.6 mm
Shoulder diameter inner ring
D1
59.05 mm
Shoulder diameter outer ring
D2
61.88 mm
Recess diameter outer ring shoulder
r1,2
1.1 mm
Chamfer dimension
mass
0.34 kg
Product net weight
