SKF 6315/HC5C3

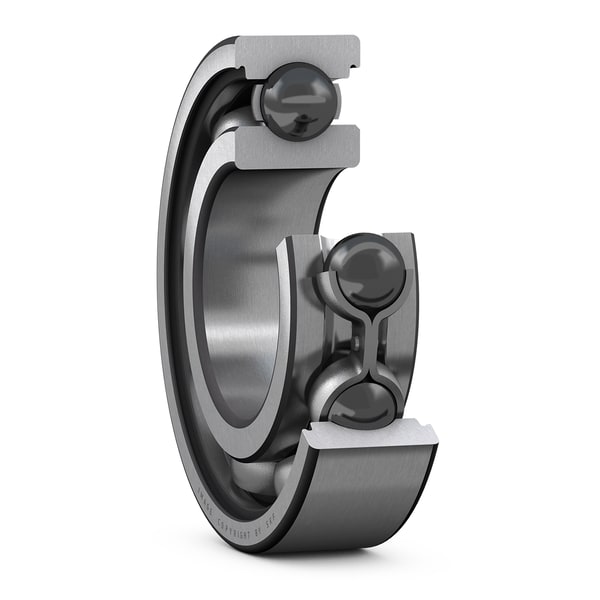

Hybrid ceramic deep groove ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
75.0 mm
Bore diameter
D
160.0 mm
Outside diameter
B
37.0 mm
Width
d1
101.4 mm
Shoulder diameter inner ring
D2
138.4 mm
Recess diameter outer ring shoulder
r1,2
2.1 mm
Chamfer dimension
mass
2.63 kg
Product net weight
