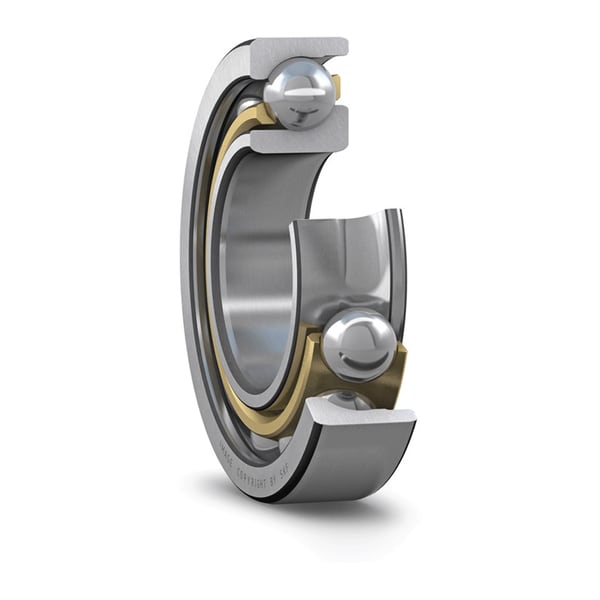

SKF 719/710 ACMB
Single row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
710.0 mm
Bore diameter
D
950.0 mm
Outside diameter
B
106.0 mm
Width
d1
793.5 mm
Shoulder diameter of inner ring (large side face)
D1
871.55 mm
Shoulder diameter of outer ring (large side face)
a
247.0 mm
Distance side face to pressure point
r1,2
6.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
