SKF 71984 AM

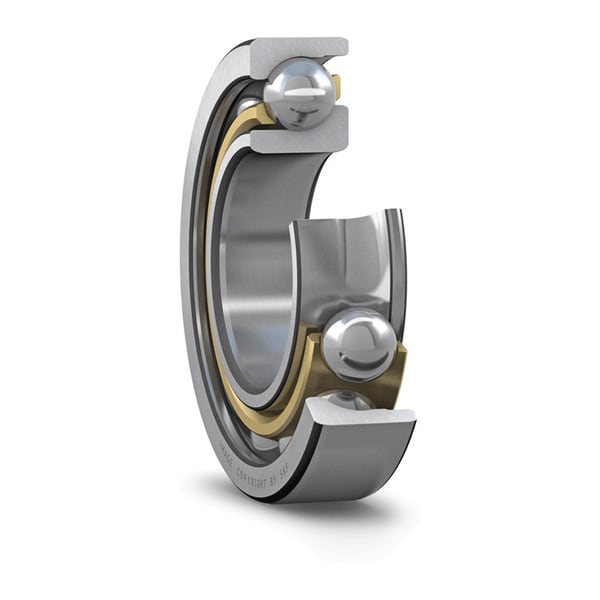

Single row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
420.0 mm
Bore diameter
D
560.0 mm
Outside diameter
B
65.0 mm
Width
d1
467.2 mm
Shoulder diameter of inner ring (large side face)
D1
515.35 mm
Shoulder diameter of outer ring (large side face)
a
174.0 mm
Distance side face to pressure point
r1,2
4.0 mm
Chamfer dimension
r3,4
1.5 mm
Chamfer dimension
