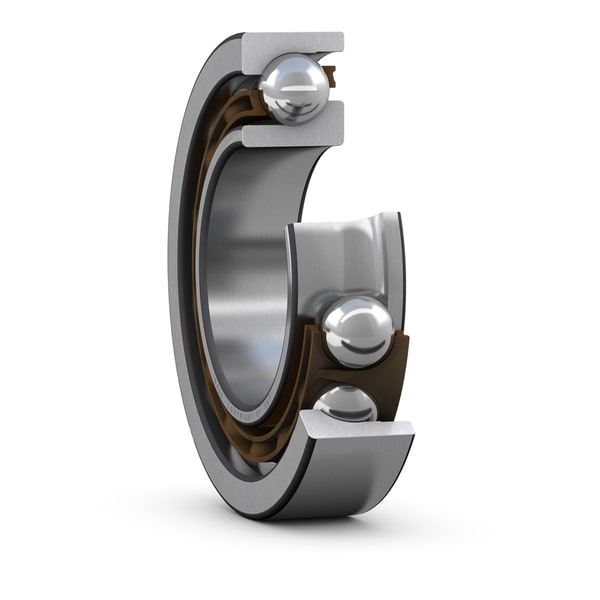

SKF 7314 BECAP
Single row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
150.0 mm
Outside diameter
B
35.0 mm
Width
d1
101.1 mm
Shoulder diameter of inner ring (large side face)
d2
84.4 mm
Shoulder diameter of inner ring (small side face)
D1
121.0 mm
Shoulder diameter of outer ring (large side face)
a
64.0 mm
Distance side face to pressure point
r1,2
2.1 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
mass
2.55 kg
Product net weight
