SKF D/W R144 R

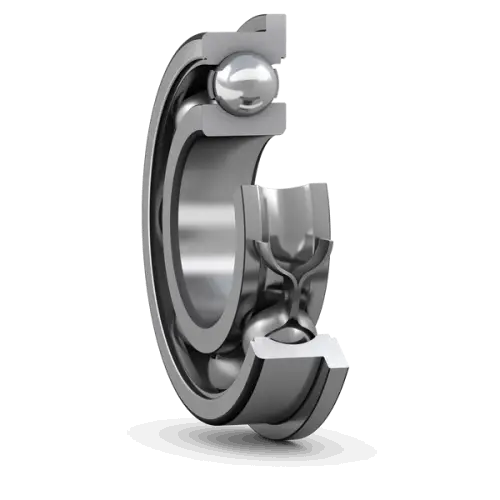

Deep groove ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
3.175 mm
Bore diameter
D
6.35 mm
Outside diameter
B
2.38 mm
Width
d1
3.93 mm
Shoulder diameter
D1
5.38 mm
Shoulder diameter
D2
5.38 mm
Recess diameter
D3
7.518 mm
Flange diameter
C
0.584 mm
Flange width
r1,2
0.1 mm
Chamfer dimension
mass
0.0005 kg
Product net weight
