SKF KDN.JA030XP0

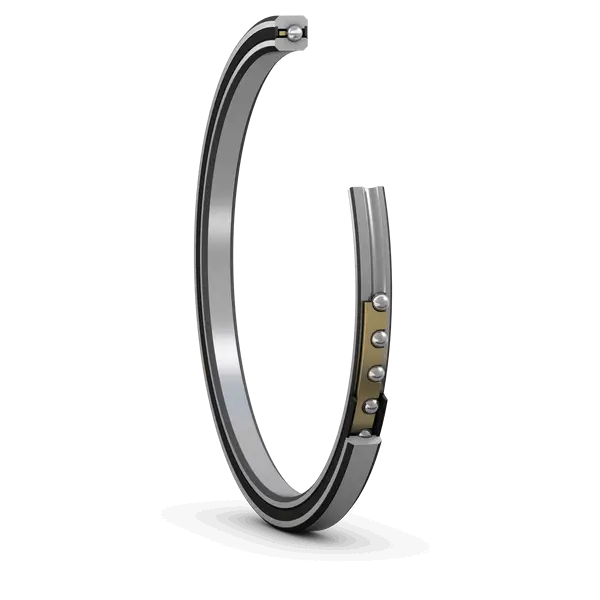

Reali-Slim thin section four-point contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
76.2 mm
Bore diameter
D
88.9 mm
Outside diameter
H
6.35 mm
Radial cross section
B
6.35 mm
Width
d1
80.924 mm
Shoulder diameter inner ring
d2
79.959 mm
Recess diameter inner ring
D1
84.176 mm
Shoulder diameter outer ring
D2
85.242 mm
Recess diameter outer ring
mass
0.0635 kg
Product net weight
