SKF KDN.JB042XP0

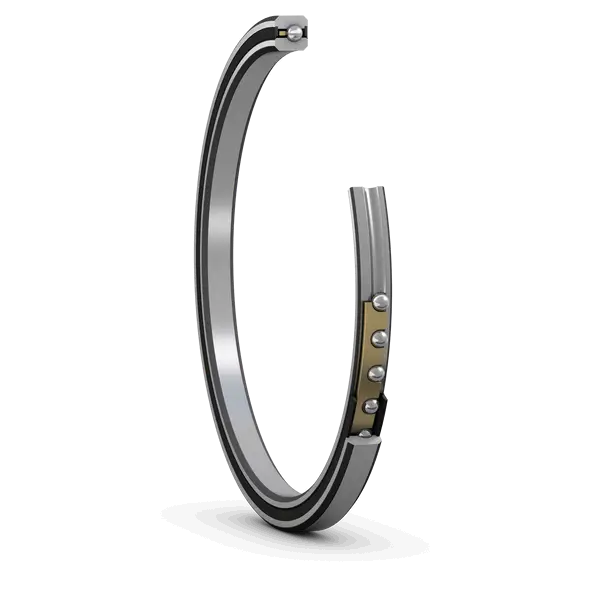

Reali-Slim thin section four-point contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
107.95 mm
Bore diameter
D
123.825 mm
Outside diameter
H
7.938 mm
Radial cross section
B
7.938 mm
Width
d1
113.83 mm
Shoulder diameter inner ring
d2
113.005 mm
Recess diameter inner ring
D1
117.945 mm
Shoulder diameter outer ring
D2
118.745 mm
Recess diameter outer ring
mass
0.141 kg
Product net weight
