SKF KDN.JG090CP0

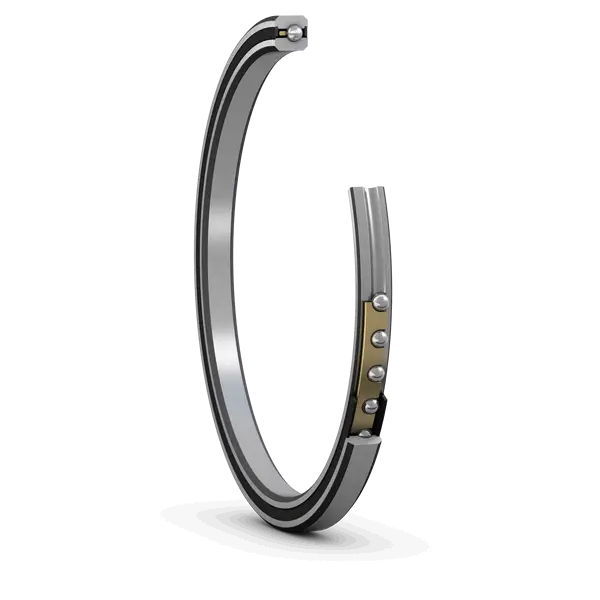

Reali-Slim thin section radial contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
228.6 mm
Bore diameter
D
279.4 mm
Outside diameter
H
25.4 mm
Radial cross section
B
25.4 mm
Width
d2
242.672 mm
Recess diameter inner ring
D2
269.291 mm
Recess diameter outer ring
mass
3.27 kg
Product net weight
