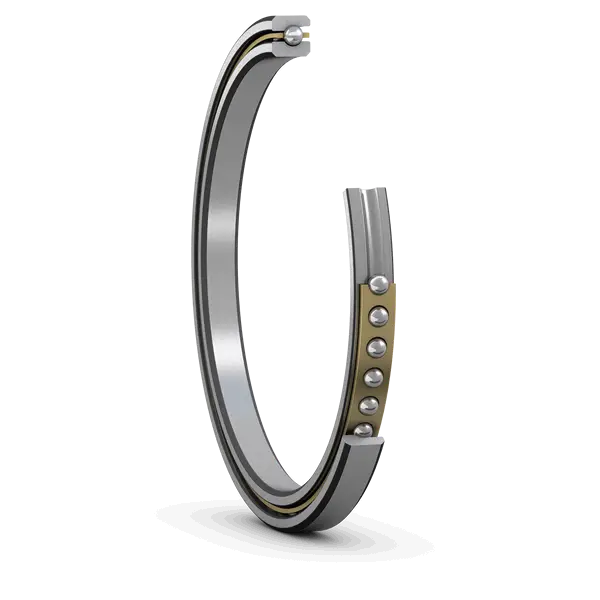

SKF KDN.K09008AR0
Reali-Slim thin section angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
D
106.0 mm
Outside diameter
H
8.0 mm
Radial cross section
B
8.001 mm
Width
d1
95.9 mm
Shoulder diameter inner ring
D1
100.1 mm
Shoulder diameter outer ring
D4
102.2 mm
Shoulder diameter outer ring
mass
0.109 kg
Product net weight
