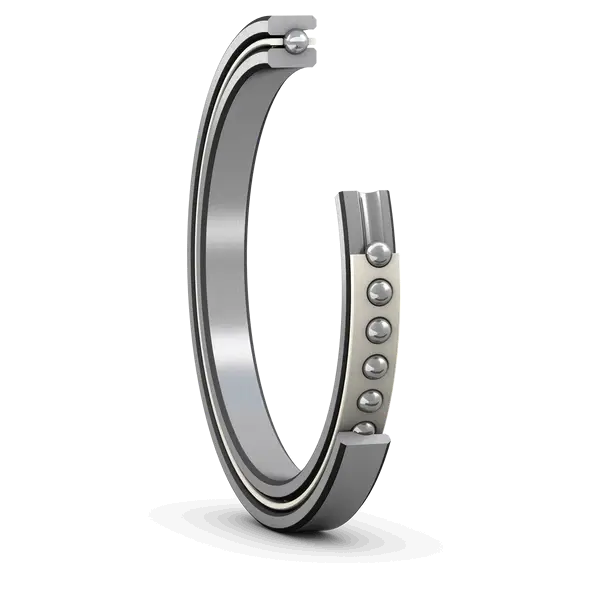

SKF KDN.KAA10AG0
Reali-Slim thin section angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.4 mm
Bore diameter
D
34.925 mm
Outside diameter
H
4.763 mm
Radial cross section
B
4.763 mm
Width
d1
28.956 mm
Shoulder diameter inner ring
D1
31.369 mm
Shoulder diameter outer ring
D4
32.36 mm
Shoulder diameter outer ring
mass
0.0136 kg
Product net weight
