SKF KDN.KC045AR0

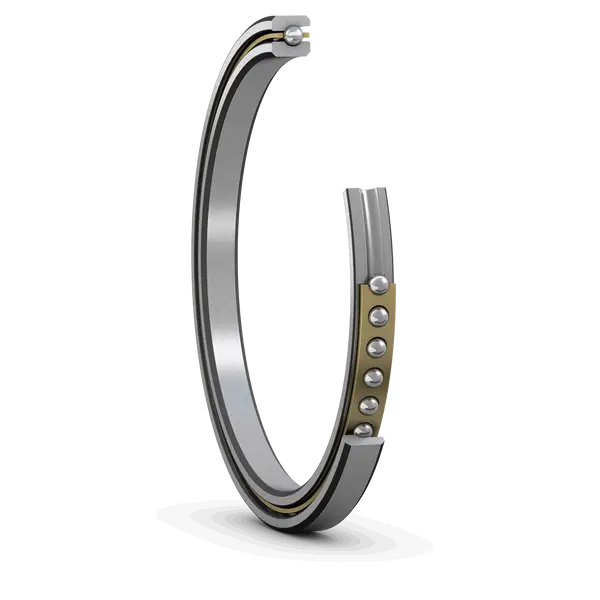

Reali-Slim thin section angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
114.3 mm
Bore diameter
D
133.35 mm
Outside diameter
H
9.525 mm
Radial cross section
B
9.525 mm
Width
d1
121.336 mm
Shoulder diameter inner ring
D1
126.314 mm
Shoulder diameter outer ring
D4
128.321 mm
Shoulder diameter outer ring
mass
0.222 kg
Product net weight
