SKF KDN.KD045AR0

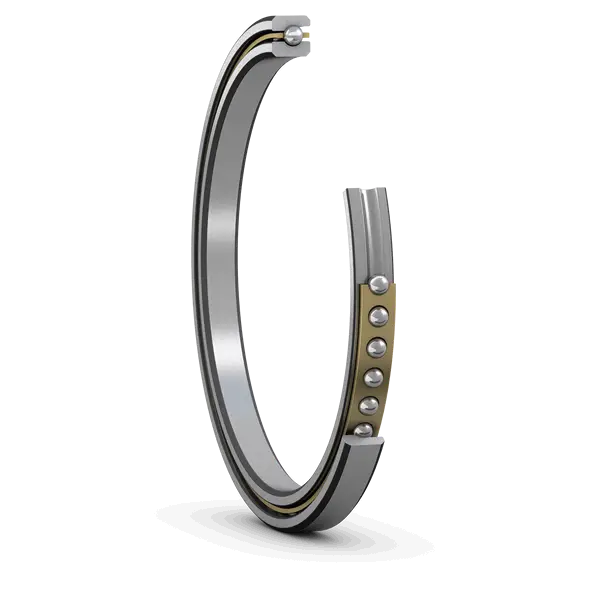

Reali-Slim thin section angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
114.3 mm
Bore diameter
D
139.7 mm
Outside diameter
H
12.7 mm
Radial cross section
B
12.7 mm
Width
d1
123.698 mm
Shoulder diameter inner ring
D1
130.302 mm
Shoulder diameter outer ring
D4
133.121 mm
Shoulder diameter outer ring
mass
0.399 kg
Product net weight
