SKF KDN.KG090AR0

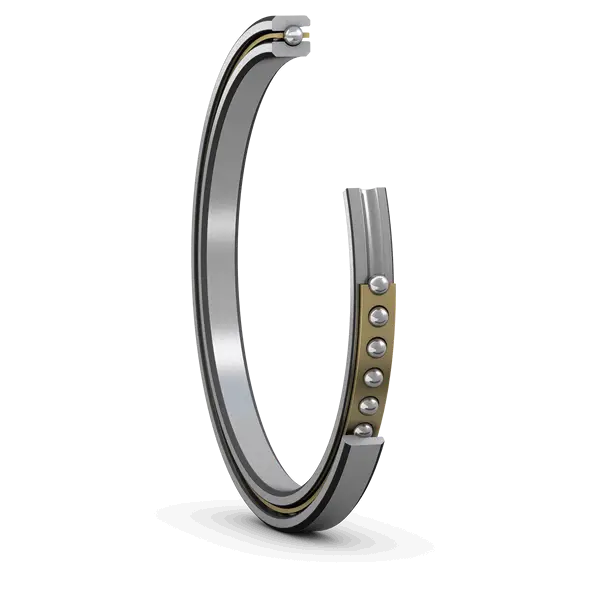

Reali-Slim thin section angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
228.6 mm
Bore diameter
D
279.4 mm
Outside diameter
H
25.4 mm
Radial cross section
B
25.4 mm
Width
d1
247.447 mm
Shoulder diameter inner ring
D1
260.553 mm
Shoulder diameter outer ring
D4
266.319 mm
Shoulder diameter outer ring
mass
3.28 kg
Product net weight
