SKF KDN.NA045AR0

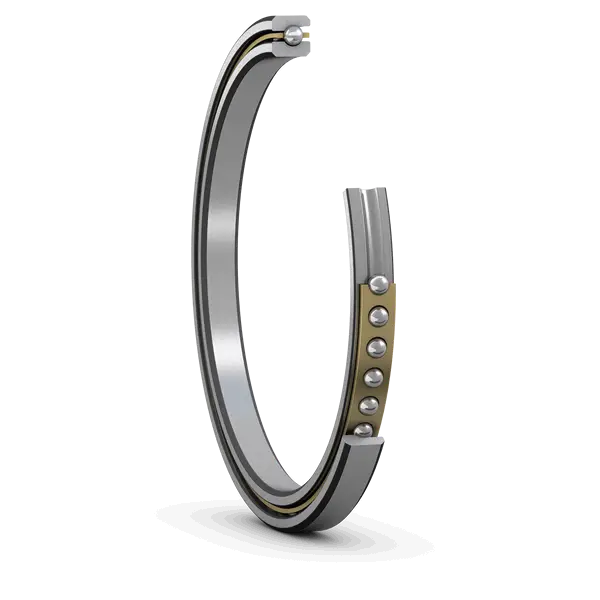

Reali-Slim thin section angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
114.295 mm
Bore diameter
D
127.008 mm
Outside diameter
H
6.35 mm
Radial cross section
B
6.35 mm
Width
d1
119.024 mm
Shoulder diameter inner ring
D1
122.276 mm
Shoulder diameter outer ring
D4
123.571 mm
Shoulder diameter outer ring
mass
0.1 kg
Product net weight
