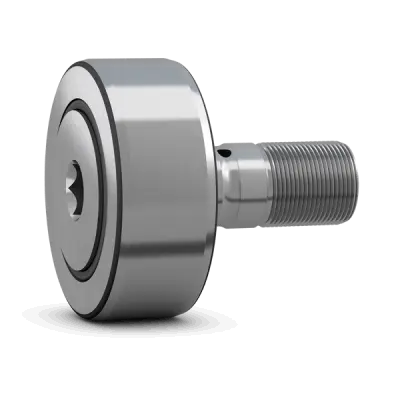

SKF NUKR 52 XA
Cam follower (stud-type track roller) with integral sealing and relubrication feature
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
52.0 mm
Outside diameter
d
20.0 mm
Attachment diameter
B
66.0 mm
Total length
C
24.0 mm
Width outer ring
B1
40.5 mm
Length shank on stud
B2
9.0 mm
Distance lubrication hole to flange ring
C1
0.8 mm
Distance face outer ring to face side washer
d1
31.0 mm
Outside diameter flange ring
G
M 20x1.5
Thread stud
G1
21.0 mm
Length thread
M
6.0 mm
Seat diameter for lubrication accessories
M1
4.0 mm
Diameter of lubrication hole (shank)
SW
10.0 mm
Width across flats
r1,2
1.0 mm
Chamfer dimension
mass
0.514 kg
Product net weight
