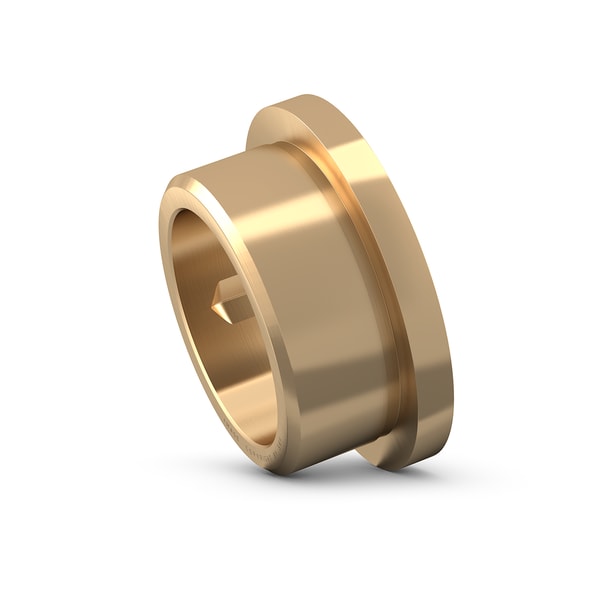

SKF PBMF 354535 M1G1
Solid bronze flanged bushing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
35.0 mm
Bore diameter
D
45.0 mm
Outside diameter
B
35.0 mm
Width
D1
55.0 mm
Outside diameter flange
B1
5.0 mm
Width flange
a
3.0 mm
Distance side face - axial lubrication groove
h
36.0 mm
Distance bottom axial lubrication groove - opposite bore diameter
α
124.0 °
Aperture angle axial lubrication groove
mass
0.227 kg
Product net weight
