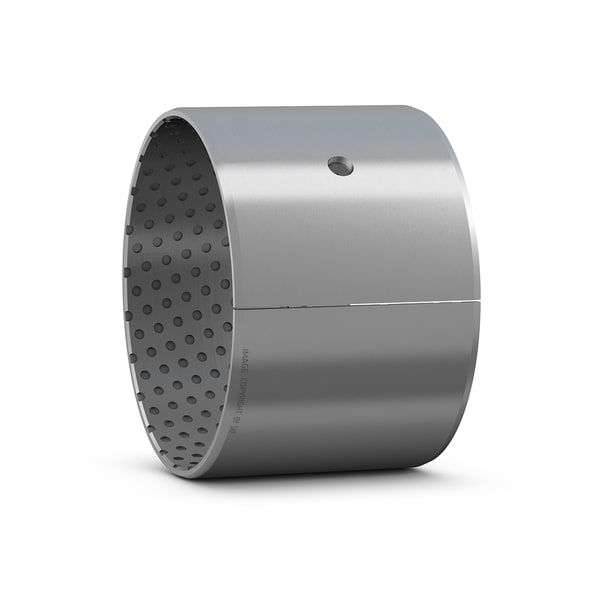

SKF PCM 11512070 M
POM composite straight bushing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
115.0 mm
Bore diameter
D
120.0 mm
Outside diameter
B
70.0 mm
Width
M
8.0 mm
Diameter lubrication hole
c1
0.2 mm
Length chamfer bore - axial direction
c1
1.0 mm
Length chamfer bore - axial direction
c2
0.8 mm
Length chamfer outside diameter - axial direction
c2
1.6 mm
Length chamfer outside diameter - axial direction
mass
0.45 kg
Product net weight
