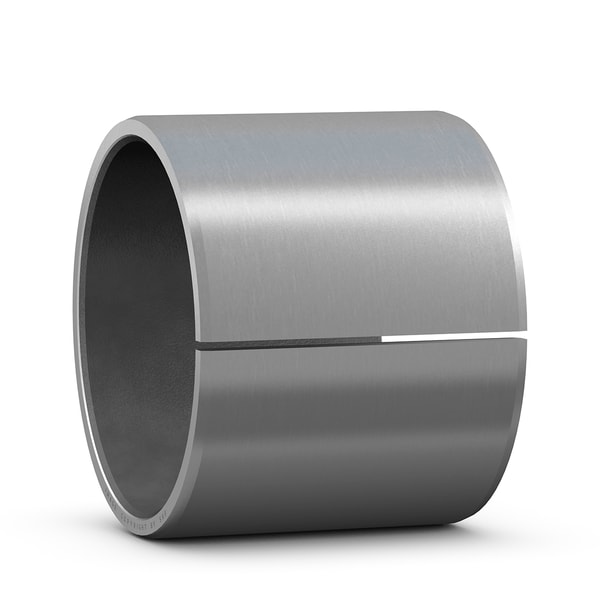

SKF PCM 758080 E
PTFE composite straight bushing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
75.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
80.0 mm
Width
c1
0.2 mm
Length chamfer bore - axial direction
c1
1.0 mm
Length chamfer bore - axial direction
c2
0.8 mm
Length chamfer outside diameter - axial direction
c2
1.6 mm
Length chamfer outside diameter - axial direction
mass
0.368 kg
Product net weight
