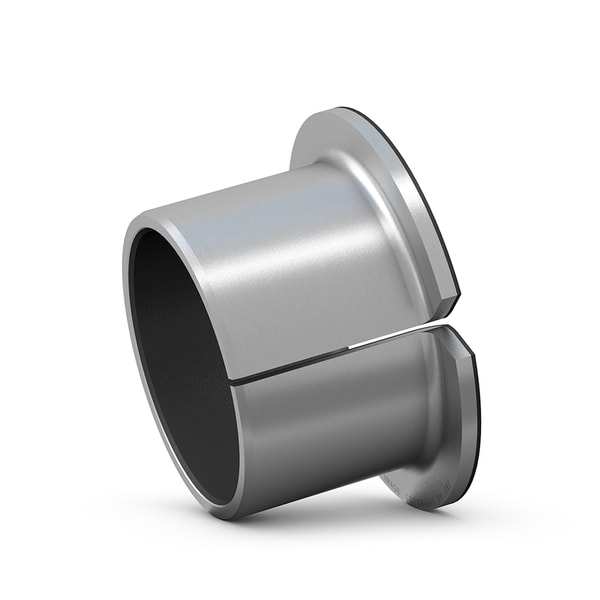

SKF PCMF 161817 E
PTFE composite flanged bushing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
16.0 mm
Bore diameter
D
18.0 mm
Outside diameter
B
17.0 mm
Width
D1
24.0 mm
Outside diameter flange
B1
1.0 mm
Width flange
c1
0.1 mm
Length chamfer bore - axial direction
c1
0.6 mm
Length chamfer bore - axial direction
c2
0.2 mm
Length chamfer outside diameter - axial direction
c2
1.0 mm
Length chamfer outside diameter - axial direction
r
1.0 mm
Radius flange/bushing outside diameter
mass
0.0078 kg
Product net weight
