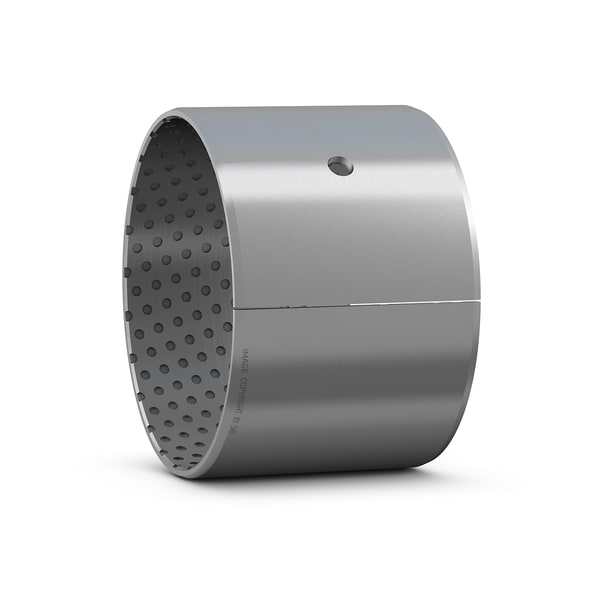

SKF PCZ 2028 M
POM composite straight bushing, inch size
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
31.75 mm
Bore diameter
D
35.719 mm
Outside diameter
B
44.45 mm
Width
M
4.0 mm
Diameter lubrication hole
c1
0.1 mm
Length chamfer bore - axial direction
c1
0.7 mm
Length chamfer bore - axial direction
c2
0.8 mm
Length chamfer outside diameter - axial direction
c2
1.6 mm
Length chamfer outside diameter - axial direction
mass
0.063 kg
Product net weight
